Universal Actuators

  • One actuator works with two position valvesand selectors
  • Simplified, universal communication protocol
  • Variety of interfaces
  • Three versions for various valve torque requirements
  • Modular version for more flexibility in instrument design
  • Autosensing universal power supply, 110/230 VAC to 24 VDC

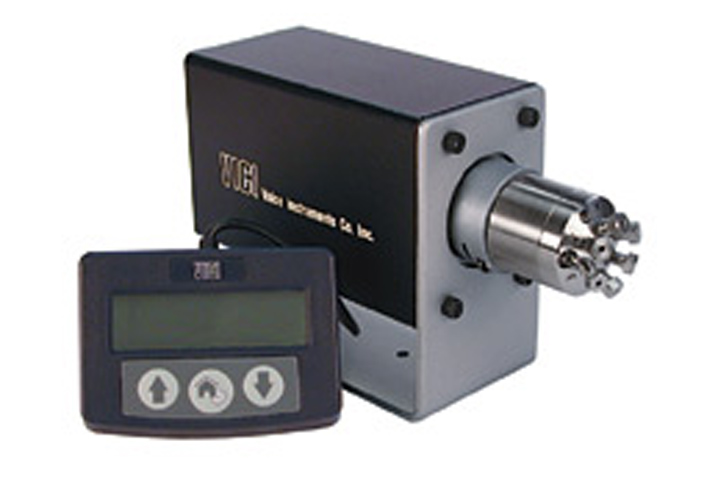

The universal actuator allows instrument manufacturers to use a single motor and control software to operate virtually any Valco or Cheminert rotary valve. This simplifies the electronic aspect of instrument design and streamlines the development process.

All our Valco and Cheminert valves and selectors, with their wide range of turning torques, are covered by three actuator versions: high speed, medium speed/medium torque, and high torque. Click <here> if you have a question about which actuator model you need.

The standard interface allows simple positioning commands -- Step and Home for selectors, A and B for two position -- via direct input signals from switch closures, relay contacts, or TTL-compatible interfaces. A more extensive command set is available with the optional RS232/485, USB, or BCD interfaces.

Actuators listed below include universal 24 volt DC power supply and a manual remote. An OEM version that excludes these items is also available. Mounting hardware must be ordered separately. Please contact our sales or technical staff to determine the correct hardware needed.

Model Interface Product No.
EUH
High speed
Standard EUH
RS-232 EUHA
USB EUHB
BCD EUHC
RS-485 EUHF
EUD
Medium torque
Standard EUD
RS-232 EUDA
USB EUDB
BCD EUDC
RS-485 EUDF
EUT
High torque
Standard EUT
RS-232 EUTA
USB EUTB
BCD EUTC
RS-485 EUTF
